CAR CABLE TIES

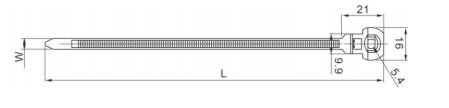

Mountable Car Head Tie
| ITEM NO. | LENGTH | WIDTH (MM) | BUNDLE DIAMETER (MM) | SCREW BOLT DIA | PACKING (MM) | |
|---|---|---|---|---|---|---|
| MM | INCH | |||||
| HT-170MTH | 6" | 170 | 5.1 | 5-42 | M5-M6 | 100PCS |

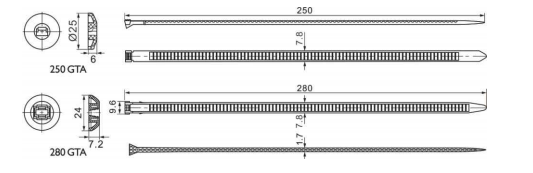

Car Substrate Fixing Head Double-Sided Tooth Tie
| ITEM NO. | LENGTH | WIDTH (MM) | BUNDLE DIAMETER (MM) | TENSILE STRENGTH | PEMARK | ||
|---|---|---|---|---|---|---|---|
| MM | INCH | LBS | KGS | ||||
| HT-250GTA | 6" | 250 | 7.8 | 60 | 120 | 55 | Single Tooth |
| HT-280GTA | 7" | 280 | 7.8 | 65 | 130 | 60 | Double Tooth |

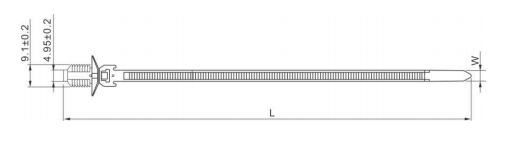

Threaded head Cable Tie
| ITEM NO. | LENGTH | WIDTH (MM) | BUNDLE DIAMETER (MM) | NUT DIA | HOLE DIA(MM) | PANEL THICKNESS (MM) | |
|---|---|---|---|---|---|---|---|
| MMINCH | MM | ||||||
| HT-2.5*110PL | 4" | 110 | 2.5 | 1-22 | M6 | 4.8~5.5 | 0.5~5 |
| ITEM NO. | LENGTH | WIDTH (MM) | BUNDLE DIAMETER (MM) | NUT DIA | HOLE DIA(MM) | PANEL THICKNESS (MM) | |
|---|---|---|---|---|---|---|---|
| MMINCH | MM | ||||||
| HT-5.5*210PL | 8" | 210 | 5.5 | 5-38 | M10 | 8~8.5 | 1~6 |

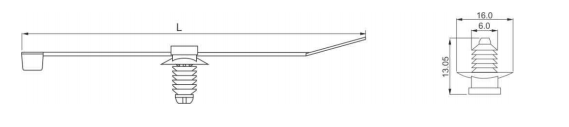

Split-type threaded head Cable Tie
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER (MM) | HOLE DIA | PANEL THICKNESS |
|---|---|---|---|---|---|
| MM | MM | MM | MM | ||
| HT-5/3.6*150PG | 150 | 3.6 | 3-35 | 4.6~5.2 | 1~3 |

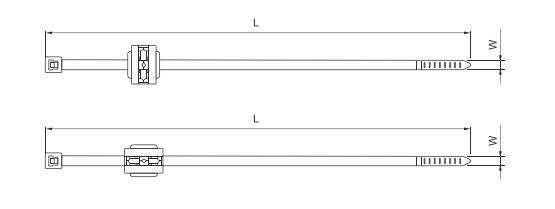

Sheet Metal Buckle Cable Tie
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER (MM) | PANEL THICKNESS |
|---|---|---|---|---|
| MM | MM | MM | ||
| HT-7.6*160PG | 160 | 7.6 | 5-40 | 4.5 |
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER (MM) | BUCKLEDIRECTION | PANEL THICKNESS |
|---|---|---|---|---|---|
| MM | MM | MM | MM | ||
| HT-3.6*150PG | 150 | 3.6 | 3-35 | Vertical | 1~3 |
| HT-4.8*200PG | 200 | 4.8 | 3-50 | Parallel | 1~3 |

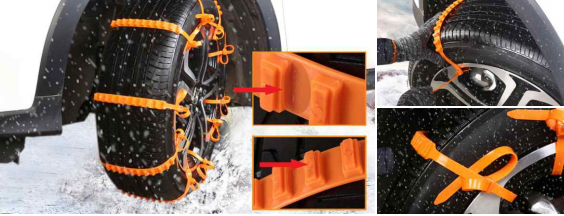

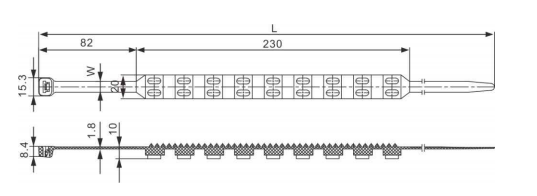

Tire Rescue Tie
| ITEM NO. | LENGTH | WIDTH (MM) | BUNDLE DIAMETER (MM) | TENSILE STRENGTH | ||
|---|---|---|---|---|---|---|
| MM | INCH | LBS | KGS | |||
| HT-920TR | 36" | 920 | 12 | 100-260 | 175 | 80 |
| ITEM NO. | LENGTH | WIDTH (MM) | BUNDLE DIAMETER (MM) | TENSILE STRENGTH | ||
|---|---|---|---|---|---|---|
| MM | INCH | LBS | KGS | |||
| HT-880TR | 34.6" | 880 | 42 | - | - | - |
