Insulated Terminal Block
Product/Insulated terminal series//Insulated Terminal Block
H Type
| ITEM NO. | WIRE RANDE | Rated Current | Rated Voltage | DIMENSIONS | SCREW SIZE | ||
|---|---|---|---|---|---|---|---|
| (MM) | A | V | L | W | H | ||
| HT001-01 | 2.5-4.0 | 3 | 380 | 92.3 | 16.8 | 12.3 | M2.5 |
| HT001-02 | 4.0-6.0 | 6 | 380 | 115.4 | 18.8 | 15.4 | M3.0 |
| HT001-03 | 6.0-10.0 | 10 | 380 | 129.3 | 20.7 | 16.5 | M3.0 |
| HT001-04 | 10-12 | 15 | 380 | 137.8 | 22.5 | 18.6 | M3.5 |
| HT001-05 | 12-14 | 20 | 380 | 138.0 | 22.5 | 19.0 | M4.0 |
| HT001-06 | 16 | 30 | 380 | 164.0 | 22.5 | 20.0 | M4.0 |
| HT001-07 | 25 | 60 | 380 | 186.0 | 29.2 | 25.3 | M4.0 |
| HT001-08 | 35 | 80 | 400 | 226.8 | 36.1 | 29.0 | M5.0 |
| HT001-09 | 40 | 100 | 450 | 154.6 | 45.0 | 34.7 | M6.0 |

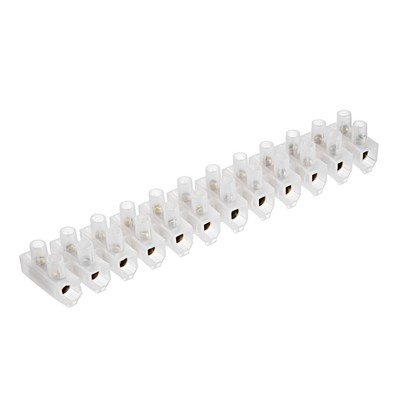

U Type
| ITEM NO. | WIRE RANDE | Rated Current | Rated Voltage | DIMENSIONS | SCREW SIZE | ||
|---|---|---|---|---|---|---|---|
| (MM) | A | V | L | W | H | ||
| HT003-01 | 2.5-4.0 | 3 | 380 | 91.4 | 15.6 | 10.8 | M2.5 |
| HT003-02 | 4.0-6.0 | 6 | 380 | 115.4 | 18.8 | 15.4 | M3.0 |
| HT001-03 | 6.0-10.0 | 6 | 380 | 112.5 | 15.5 | 12.8 | M3.0 |
| HT003-04 | 10-12 | 15 | 380 | 137.3 | 22.5 | 16.6 | M3.5 |
| HT005-05 | 12-14 | 20 | 380 | 137.5 | 22.7 | 17.7 | M4.0 |
| HT003-06 | 16 | 30 | 380 | 164.5 | 25.3 | 19.0 | M4.0 |
| HT003-07 | 25 | 60 | 380 | 185.5 | 29.2 | 24.0 | M4.0 |
| HT003-08 | 35 | 80 | 400 | 204.5 | 32.6 | 27.2 | M5.0 |
| HT003-09 | 40 | 100 | 450 | 250.0 | 45.6 | 30.6 | M6.0 |
